Airline Aluminum Foil Food Container Making Machine

Availability:
Quantity:
  • AF-45AT

Product parameters

1. Mitsubishi PLC as the controlling system.

2-Feeding, punching, scrap collecting is running automatically.

3-High accuracy and reliability press It is reliabale.

4. Feeding length is accurate -Parameter are easily be setted.                                                                 -It is integration of Gas & Electrical, centralized control

item value

Max.Pressure

450kn

Max.Material Width

750mm (OEM)

Max.Material Diameter

650mm

Speed

40 -78pcs/min(1 cavity); 80- 156pcs/min (2 cavities)

Slide Stroke

240mm

Mold Loading Height

270-480mm

Mold Adjustable Height

60mm

Press Power

7.5kw

Press weight

5500kg

Press Dimension

1800mm* 2300mm*1700mm

Feeding Machine Size

2200mm*1400 mm*1500 mm

Feeding accuracy

+/-0.1mm

Feeding Machine Power 1.5kw
Double Track Collector Size 2500mm*1300mm*1600mm
Double Track Collector Power 3kw
Lunch box size (Collector) 100*100mm - 250*350mm
Voltage 220V/60H; 380V/50HZ
Gas pressure  0.6Mра
送料机1 拷贝

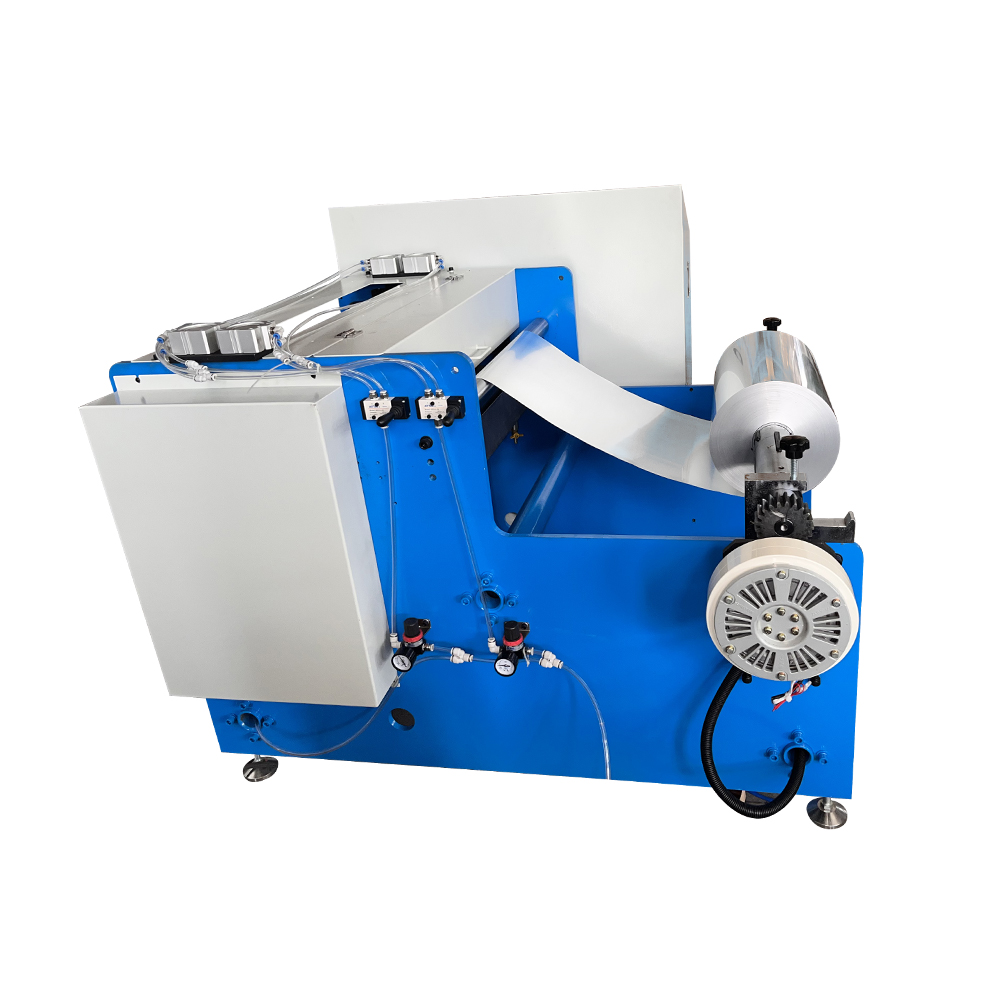

1.Feeding machine

1-Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment.


2- One machine can realize automatic oiling, automatic feeding, the length of an arbitrary set, it provide accurate positioning
and widely adjusting range.The device has the characteristics of feeding accuracy, coating the oil evenly, material waste is small, high efficiency, clean appearance, small size and easy installation, simple operation and low noise


微信图片_20230908104246






2.Punching machine

1-High performance presses are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses
and meters,medical equipment,electrical home appliance and hardware.


2-Square figure long guide with six friction faces makes abrasion resistant and punching precision, drives stably with low noise and long service life.


3-PLC electric control system issafe and reliable.



4

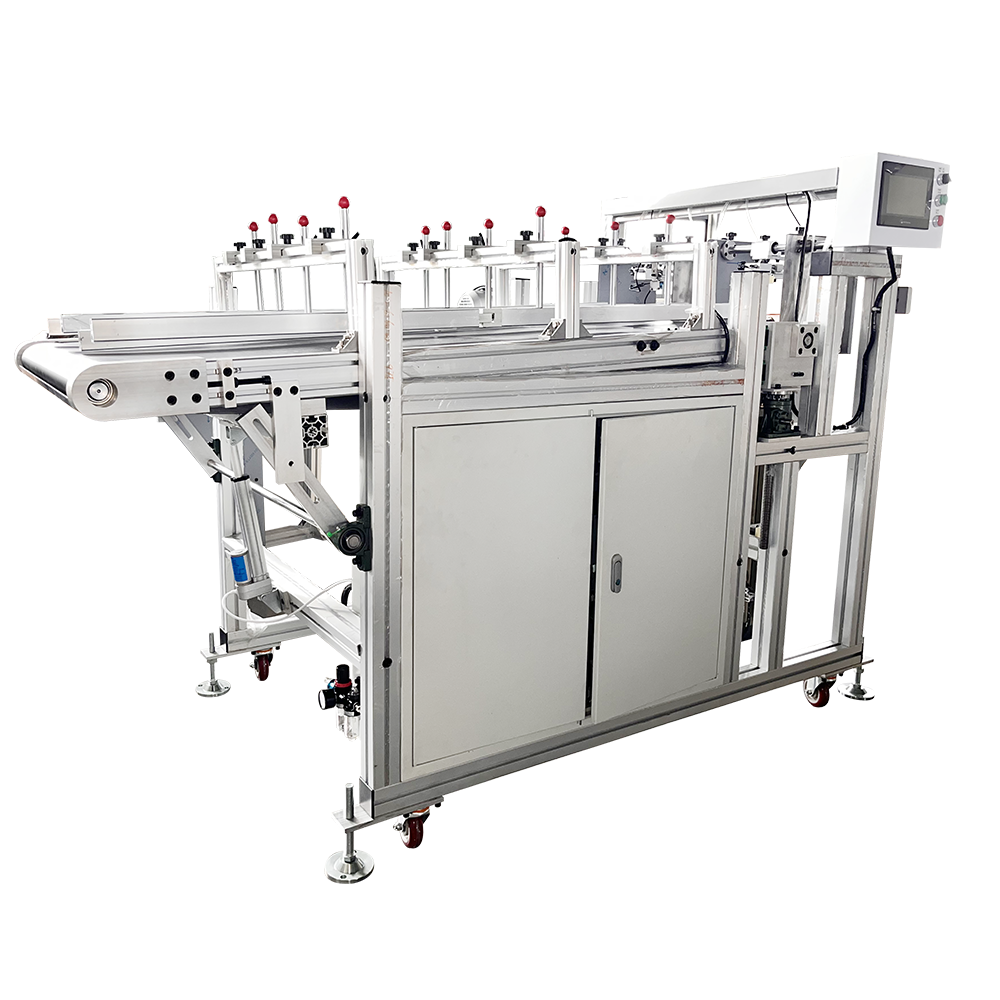

3.Automatic stacker, 1-4 lanes (optional)

It is a assist system to collect containers.

1-Frequency control speed adjustment of conveyor.

2-Auto-counting function.

3-Container platform anticollision function

4-Can connect production line linkage or single use.

5-Adopt touch screen and PLC

computer control. 6-Lifting table adopt stepper and ball screw table.


微信图片_20230908105444

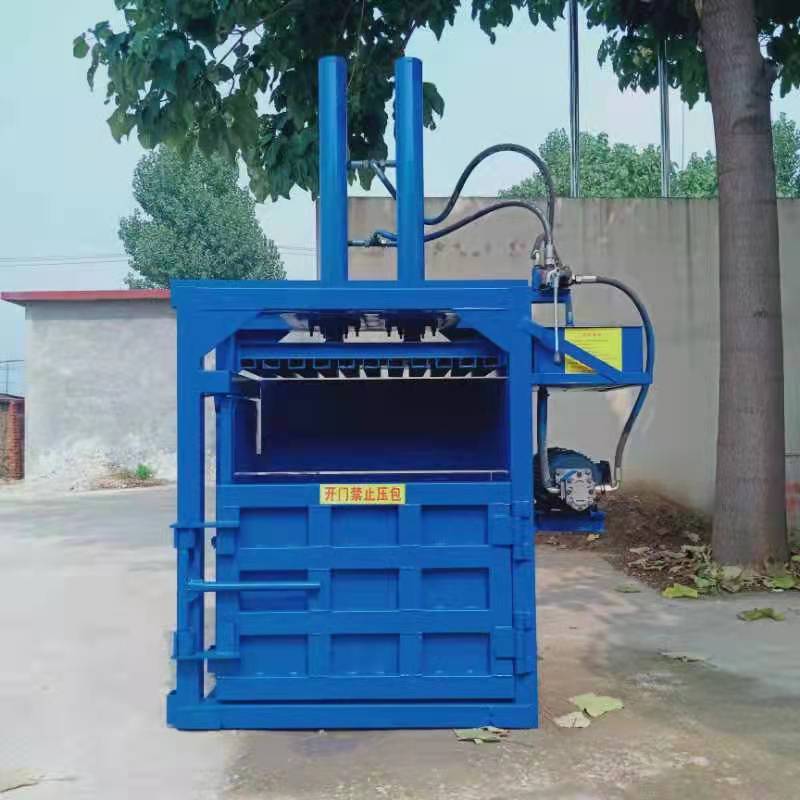

4.Auto-scrap Collector

Scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil . The vacuum adsorb collect
system system collects the scrap in a bin and then will compact the aluminium scrap into bales.

1-Use vacuum adsorb collect system, easier to collect the Al-foil .


2-Low noise , more greener. reduce noise pollution.


3-Use round knife and flat cutter to cut the materials.


6

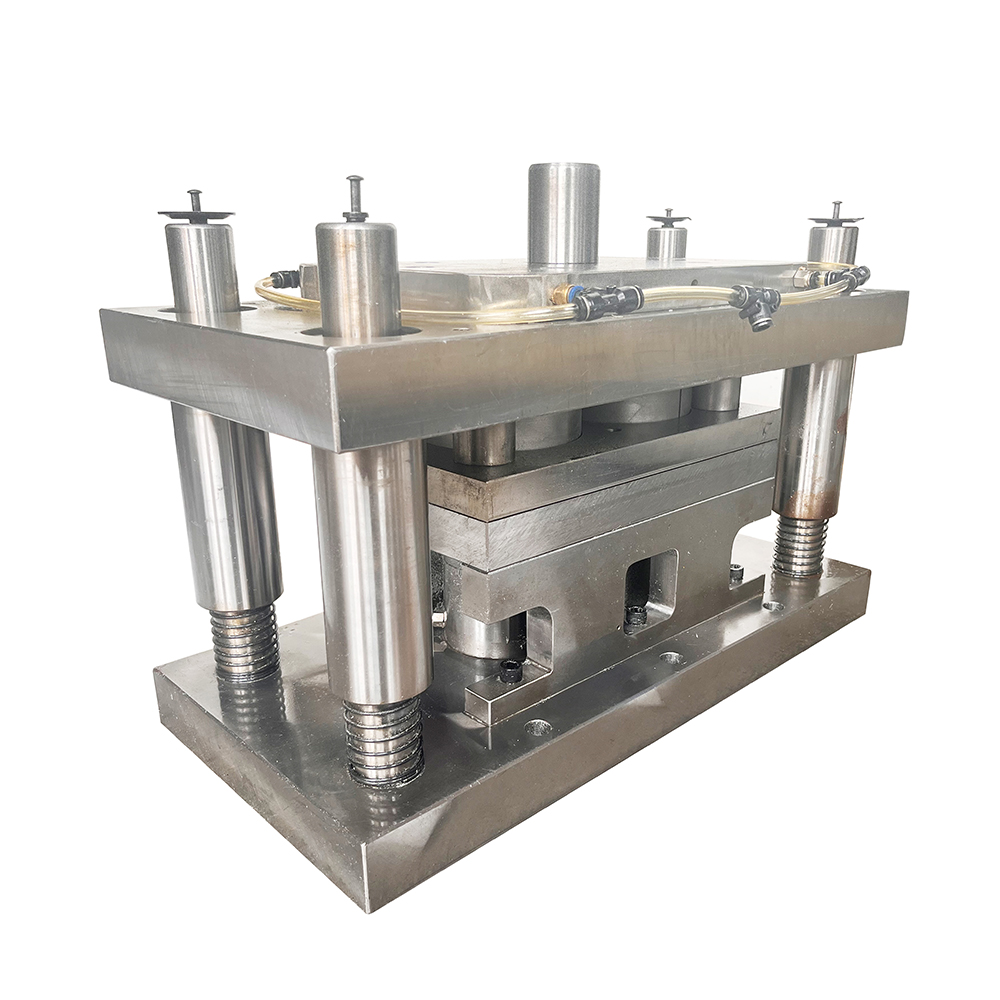

5.Mold

It is a assist system to collect containers. 1-Frequency control speed adjustment of conveyor.

2-Auto-counting function.

3-Container platform anticollision function

4-Can connect production line linkage or single use.

5-Adopt touch screen and PLC computer control.

6-Lifting table adopt stepper and ball screw table

  • We fixed our machine in container which will be protected well during shipping
    Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
  • Before packing We must test the machine and mold to run properly
    We must test the machine and mold to run properly
  • Stable package,professional and skilled loader reduce damage of product during transport.
    Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
Zhangjiagang Fineness Aluminum Foil Co., Ltd.is a company dedicated to the research, development, production and sale of aluminum foil related products, such as aluminum foil for food packing, hairdressing foil, silicone oil, barbecue paper, aluminum foil jumbo roll, aluminum foil containers, aluminum foil rewinding machines, and manual aluminum foil cutting machines and aluminum foil container production lines. With the pace of globalization, our company spares no effort in becoming a first-class supplier of such products.
we can do machine as follows:
1. Aluminum Foil Container Machine
2. Aluminum Foil Roll Machine
3. Slitter & Rewinder
4. Cross Cutting Machine
5. Aluminum Foil Scrap Baler
6. Automatic Carton Sealer
7. Aluminum Flexible Duct Machine
8. Aluminum Container Mould.

客户


1. Are you trading company or manufacturer ?

We are factory.


2.What kind of terms of payment?

T/T, L/C,D/A,D/P,Western Union are available.


3.Can you do Customization & Reproduction if I provide a photo?

Yes, we do Customization & Reproduction service, please check the details and sample above. You need to send the pictures to our email, tell us the specification you want, Then we will quote you exact price.We will take photos for you check.


4.Does the packaging safe and arrive in good conditions?

Yes, Safe Packing guarrantee, all the products will arrive your door under good conditions. We response to problem of shipping if there unfortunately is.


5.How long does it usually take to deliver the product?

We'll make the shipment to you immediately.It will take about 18 to 40 days arrive worldwide. Accurate delivery time depends on the specific quantity


6.Is drop shipping abailable?

Yes, it is, we can send to worldwide.
