Aluminum Foil Take Away Box Forming Machines

Product parameters

1. Mitsubishi PLC as the controlling system.

2-Feeding, punching, scrap collecting is running automatically.

3-High accuracy and reliability press It is reliabale.

4. Feeding length is accurate -Parameter are easily be setted. -It is integration of Gas & Electrical, centralized control

item	value
Max.Pressure	450kn
Max.Material Width	750mm (OEM)
Max.Material Diameter	650mm
Speed	40 -78pcs/min(1 cavity); 80- 156pcs/min (2 cavities)
Slide Stroke	240mm
Mold Loading Height	270-480mm
Mold Adjustable Height	60mm
Press Power	7.5kw
Press weight	5500kg
Press Dimension	1800mm* 2300mm*1700mm
Feeding Machine Size	2200mm1400 mm1500 mm
Feeding accuracy	+/-0.1mm
Feeding Machine Power	1.5kw
Double Track Collector Size	2500mm1300mm1600mm
Double Track Collector Power	3kw
Lunch box size (Collector)	100100mm - 250350mm
Voltage	220V/60H; 380V/50HZ
Gas pressure	0.6Mра

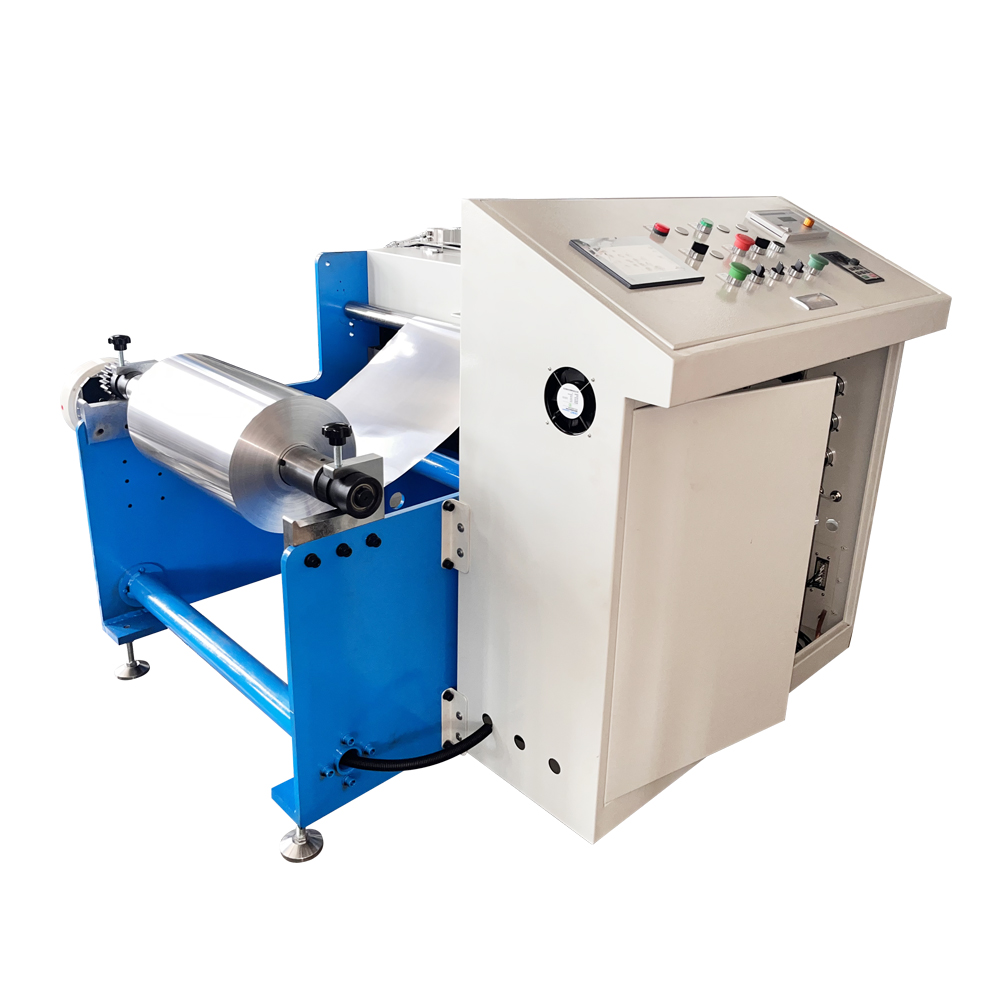

1.Feeding machine

1-Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment.

2- One machine can realize automatic oiling, automatic feeding, the length of an arbitrary set, it provide accurate positioning
and widely adjusting range.The device has the characteristics of feeding accuracy, coating the oil evenly, material waste is small, high efficiency, clean appearance, small size and easy installation, simple operation and low noise

2.Punching machine

1-High performance presses are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses
and meters,medical equipment,electrical home appliance and hardware.

2-Square figure long guide with six friction faces makes abrasion resistant and punching precision, drives stably with low noise and long service life.

3-PLC electric control system issafe and reliable.

3.Automatic stacker, 1-4 lanes (optional)

It is a assist system to collect containers.

1-Frequency control speed adjustment of conveyor.

2-Auto-counting function.

3-Container platform anticollision function
4-Can connect production line linkage or single use.

5-Adopt touch screen and PLC

computer control. 6-Lifting table adopt stepper and ball screw table.

4.Auto-scrap Collector

Scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil . The vacuum adsorb collect
system system collects the scrap in a bin and then will compact the aluminium scrap into bales.

1-Use vacuum adsorb collect system, easier to collect the Al-foil .

2-Low noise , more greener. reduce noise pollution.

3-Use round knife and flat cutter to cut the materials.

5.Mold

It is a assist system to collect containers. 1-Frequency control speed adjustment of conveyor.

2-Auto-counting function.

3-Container platform anticollision function

4-Can connect production line linkage or single use.

5-Adopt touch screen and PLC computer control.

6-Lifting table adopt stepper and ball screw table

We fixed our machine in container which will be protected well during shipping

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.

SUBMIT
Before packing We must test the machine and mold to run properly

We must test the machine and mold to run properly

SUBMIT
Stable package,professional and skilled loader reduce damage of product during transport.

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.

SUBMIT

Zhangjiagang Fineness Aluminum Foil Co., Ltd.is a company dedicated to the research, development, production and sale of aluminum foil related products, such as aluminum foil for food packing, hairdressing foil, silicone oil, barbecue paper, aluminum foil jumbo roll, aluminum foil containers, aluminum foil rewinding machines, and manual aluminum foil cutting machines and aluminum foil container production lines. With the pace of globalization, our company spares no effort in becoming a first-class supplier of such products.

we can do machine as follows:
1. Aluminum Foil Container Machine
2. Aluminum Foil Roll Machine
3. Slitter & Rewinder
4. Cross Cutting Machine
5. Aluminum Foil Scrap Baler
6. Automatic Carton Sealer
7. Aluminum Flexible Duct Machine
8. Aluminum Container Mould.
