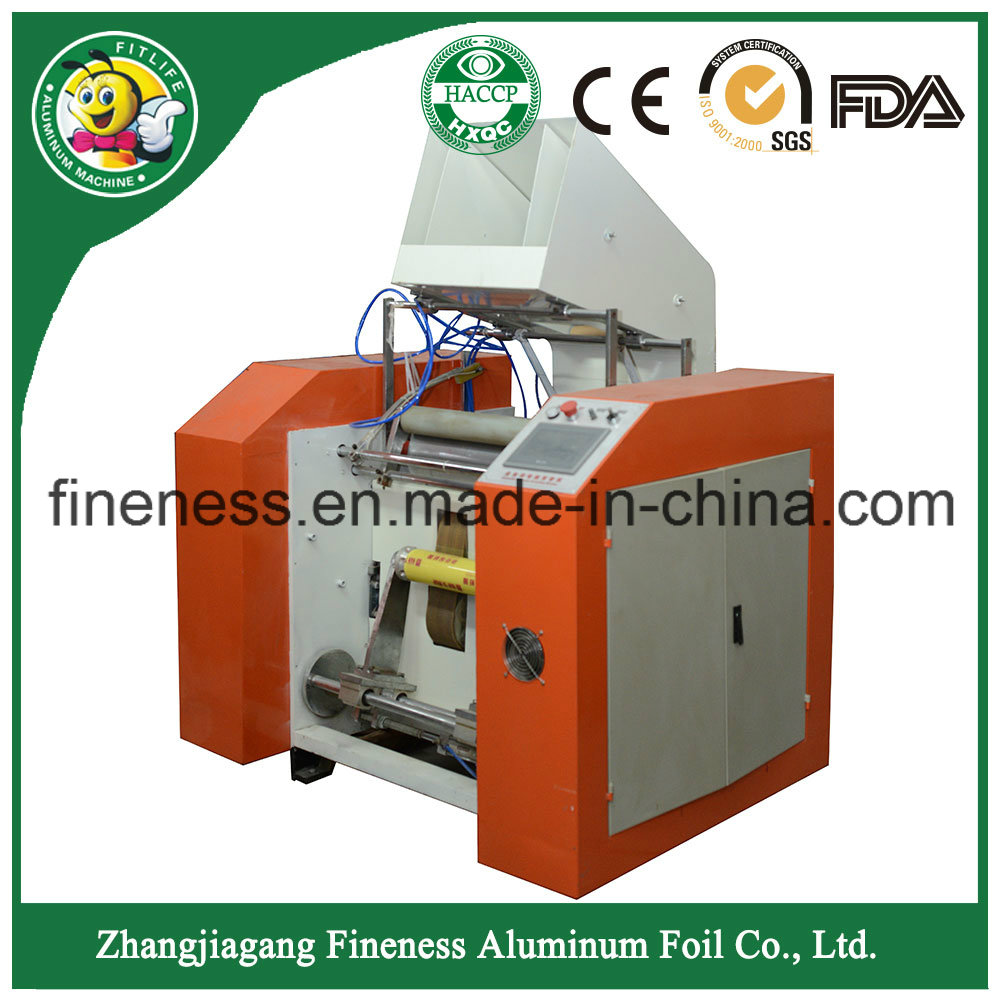

Equipment for Aluminum Foil Rewinding

Quantity:
  • HAFA500
  • Fineness
  • 1.8x1.6x0.8m
  • 8441801000
  • Cutting and Packaging
  • Wooden Case
  • Zhangjiagang
Our company official website:   www.fitlifemac.com


We are Manufacturer of aluminum foil machine in China. We can supply good price and best service of our machines Product Description

Main Technical Parameter:

Max. Width of Material: 500mm ( 19.69")

Max. Unwind roll Diameter of Material: 600mm (23.62")

Wall thickness of Material: 0.01-0.02mm

Max. Unwind core Diameter of Material: 75/150mm

The Core Diameter of finished Product: 32/30/35/38

The Length of Finished Product: 50-500m

Producing Speed: 5m/SECOND

Total Power: 4.5Kw

Total Weight: 600 Kg

Dimension (L*W*H): 1800*1600*800mm



Made by Finenss group.
SGS CE certifcate
Warranty time: 4 year

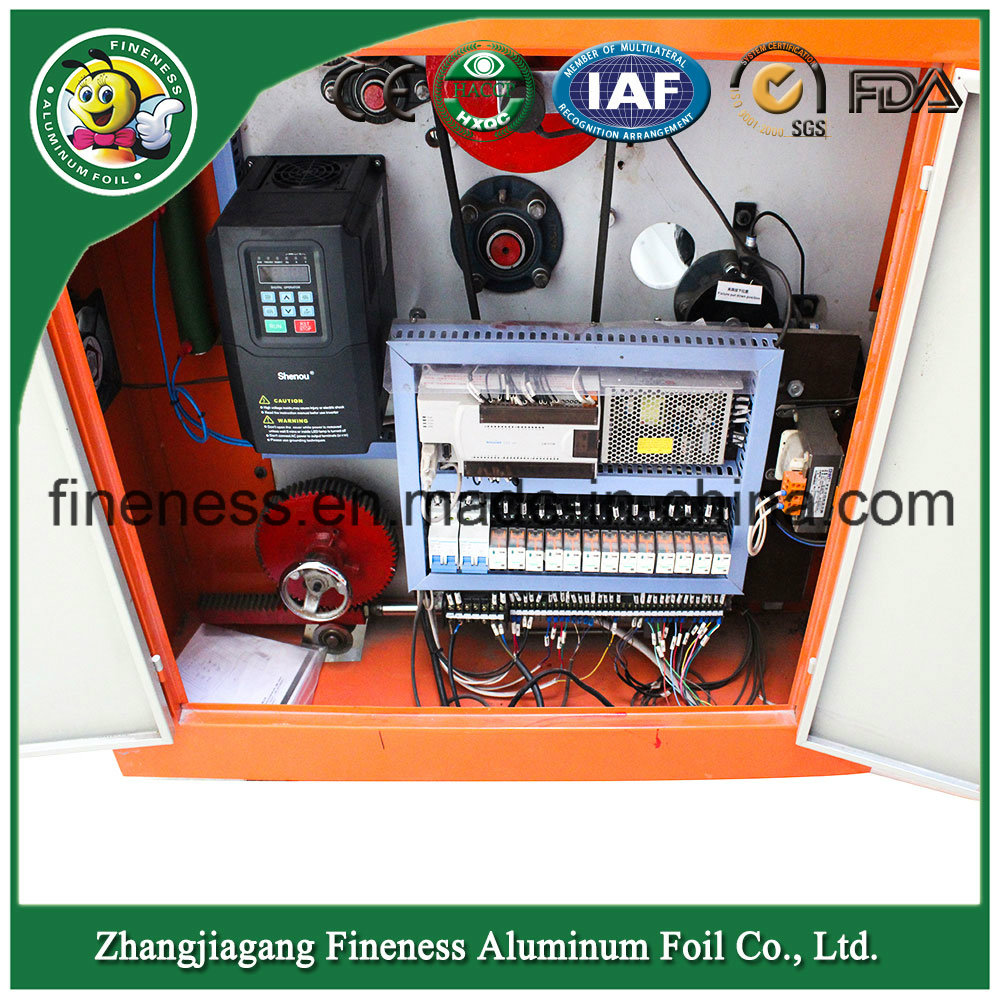

10) Power mold:
Traction motor: Y100L-4, Asynchronous motor: 2.2KW
Aquirrel-cage motor: P60B 8200, Servo motor: 1.5KW
Rotating motor: 100YCJ120-3AP, Speed reduction motor: 120W
11) Magnetic powder brake: 25N. M BFDZ(K)-25
12) Magnetic particle clutch: 12N. M ZKB-1.2BN
13) Overall dimension: Length: 3980mm, width: 1360mm, height: 1910mm
14) Power of complete equipment: 4.5 KW
15) Weight of complete equipment: 1450 KG
This product mainly be used for the aluminum foil cutting and wrapping
1) Material thickness: 9mic-20mic
2) Material width: 250mm-500mm
3) Max O. D of roll: 60mm
4) Material roll core I. D: 75mm(optional)
5) Finished product core I. D: 24mm, 30mm and 38mm
6) Length of production: 3m-300m
7) Production efficiency: 150m/minute
8) Open-roll middle stroke: ± 20mm
9) Pressure: 0.5Mpa
10) Power mold:
Traction motor: Y100L-4, Asynchronous motor: 2.2KW
Aquirrel-cage motor: P60B 8200, Servo motor: 1.5KW
Rotating motor: 100YCJ120-3AP, Speed reduction motor: 120W
11) Magnetic powder brake: 25N. M BFDZ(K)-25
12) Magnetic particle clutch: 12N. M ZKB-1.2BN
13) Overall dimension: Length: 3980mm, width: 1360mm, height: 1910mm
14) Power of complete equipment: 4.5 KW
15) Weight of complete equipment: 1450 KG

We have much experience in this line. We have exported to Italy, Greece, Russia, the Middle East, etc. we have passed ISO9001:2000, Haccp, AAA. Our aluminum foil related products have passed FDA, SGS, TUV. Our machines passed CE.With advanced equipments, superior quality administers and toping working team, we can offer our customers high quality products and the finest services. We are looking forward to establishing long-term business relations with clients
