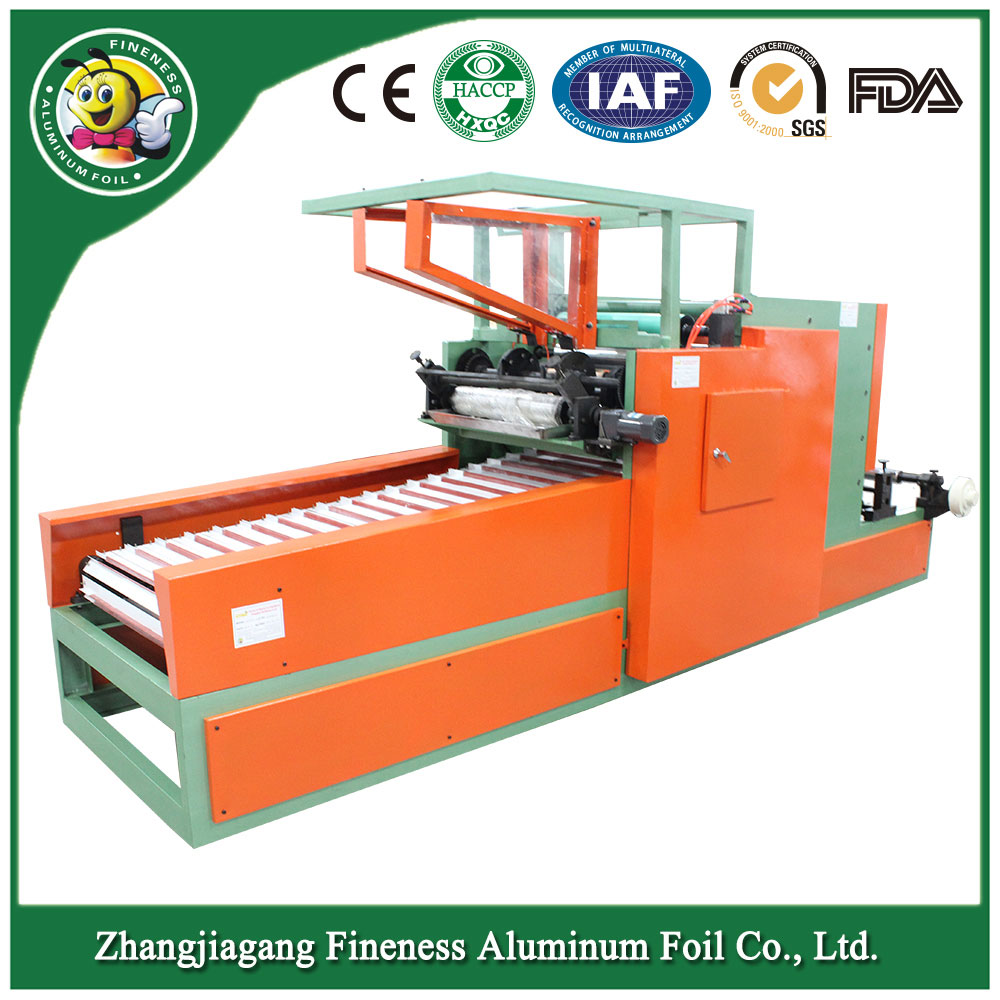

Aluminum Foil Rewinding and Cutting Machine (HAFA-850III)

Quantity:
  • HAFA-850III
  • Roll Slitter
  • Host
  • Rewinding and Cutting Machine
  • Film Cutting
  • The Shunt Winding Processing
  • Wooden Case
  • Zhangjiagang
  • Food
  • Sawing Cutting
  • Case
  • Rewinding and Cutting Machine
  • Aluminium Foil
  • Fineness
  • 4.1x1.6x1.8m
  • 7607119000
Our company official website:   www.fineness-alu.com
HAFA-850
Main Technical parameters:
Thickness of Raw Material) 0.009-0.025 Air Pressure 0.5Mpa
Width of Raw Material 250-600mm Overal Dimension 4000*1550*1750mm
Maximun Unwinding Diameter φ600mm Total Power approx 4.5KW
Inner Diameter of Raw Material Roll Core φ75mm,φ150mm Total Weight approx 1700Kg
Inner Diameter of Finished Product Roll Core φ25mm,φ30mm,φ38 mm Production Efficiency 2-3m/s
Cutting Length of Roll 3-300m Decoil Centering Stroke +/-20mm
I: MachineineFeature:
-With auto feeding aluminum foil speed control, alignment and adjustment.
-Fully auto core loading, gluing, slitting and rewinding of foil rolls.
-Complete with meter cutting length control
-Combination of both western &Asian Technologies on complete production and control
-High productivity and user-friendly
-Complete with all safety features
-Customized build to respective buyer's requirement

II. Main technical parameter
-Thickness of Raw Material: 0.009_0.025mm
-Width of Raw Material: 250_600mm
-Maximun Unwinding Diameter: φ 600mm
-Inner Diameter of Raw Material Roll Core: φ 75mm\φ 150mm
-Inner Diameter of Finished Product Roll Core: φ 25mm\φ 30mm\φ 38 mm
-Cutting Length of Roll): 5_300m
-Production Efficiency: 2-3m/sec
-Decoil Centering Stroke): +/-20mm
-Air Pressure: 0.5Mpa

III. Engine Model:
-(Traction Motor): Siemenstouch screen panel
(Squirrel-cage Rotary Motor): Mitsubishi PLCn and servo
(Rotary Glue Motor): 100YCJ120-3AP (Reduction Motor) 120W
-(Magnetic Powder Brake): 25N. M
-(Magnetic Powder Cluch): 25N. M
-(Overal Dimension): (Length)4000mm (Width)1550mm (High) 1750mm
-(Total Power): Approx 4.5KW
-(Total Weight): Approx 1700Kg


Aluminum Foil Rewinding and Cutting Machine (HAFA-850III) Aluminum Foil Rewinding and Cutting Machine (HAFA-850III)

Aluminum Foil Rewinding and Cutting Machine (HAFA-850III) Aluminum Foil Rewinding and Cutting Machine (HAFA-850III) Aluminum Foil Rewinding and Cutting Machine (HAFA-850III) Aluminum Foil Rewinding and Cutting Machine (HAFA-850III)

After-sales Service Provided:Engineers ava ilable to service machinery overseas
We have much experience in this line. We have exported to Italy, Greece, Russia, the Middle East, etc. we have passed ISO9001:2000, Haccp, AAA. Our aluminum foil related products have passed FDA, SGS, TUV. Our machines passed CE.With advanced equipments, superior quality administers and toping working team, we can offer our customers high quality products and the finest services. We are looking forward to establishing long-term business relations with clients
